Utility Tractor | Agricultural Tractor Manufacturer

Utility Tractor, 130-140HP

Features

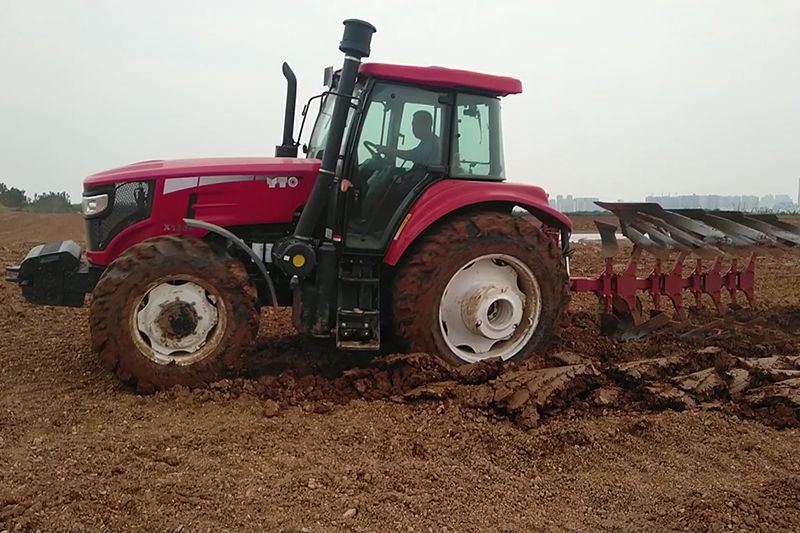

The series of tractors perform well in farming chores and transportation with its large traction force;
The naturally aspirated 6-cylindered diesel engine delivers high horsepower while consuming less fuel;
12F/4R gears provide a wide speed range to suit various needs;
With the heat dissipation system in transmissions, tractors can easily handle demanding chores;
The hydrostatic steering unit enables easy and flexible operation;
The wet disc brake system reduces operator effort and saves labor;
The independent PTO enables tractors to plow, sow, fertilize and do other chores;

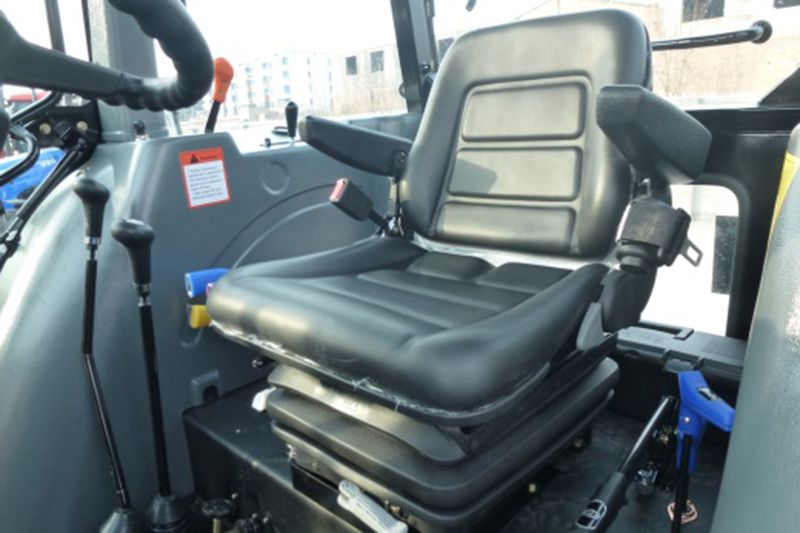

The enclosed cab provides operators a wide view and a comfortable experience with an air conditioner (optional);
Gear shift synchronizers, soil compaction equipment and a lifter are optional accessories;
Optional 1.4m wheelbase tractors can be used for plowing, transportation, intertillage, drug delivery and fertilization.

Specifications

Model	NLX1304	NLX1404*
Engine type	Naturally aspirated 6-cylinder diesel engine
Rated engine HP (kW)	95.6 (130)	103 (140)
Engine speed (rpm)	2300
Clutch	Independent, double action
Gears	12F/4R (Option: 24F/8R)
Speed range (km/h)	2.2-29.6
Brake	Wet, disc
Rear PTO (rpm)	540/1000
Lift capacity (pivot point) (kN)	≥47
Hydraulic multiplier (set)	2 or 3
Dimensions (LWH) (mm)	505023803100
Wheelbase (mm)	2688.5
Ground clearance (mm)	470

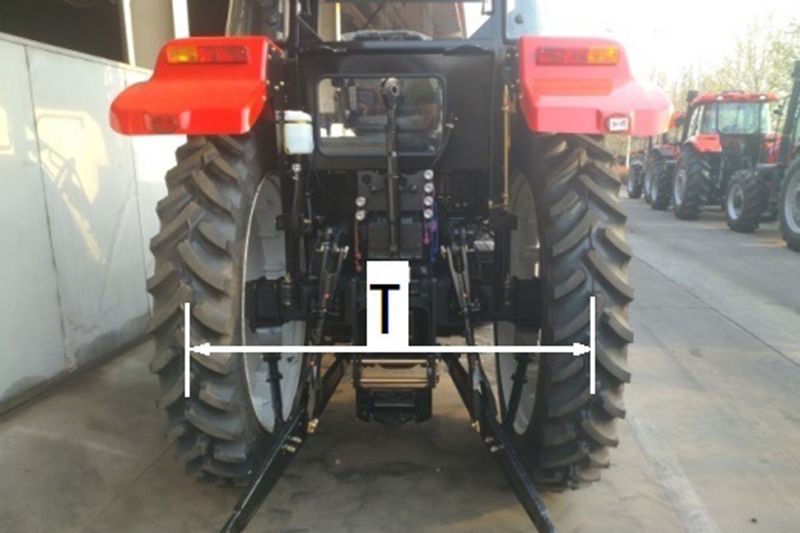

Wheel track (F/R) (mm)	1672-2003/ 1662-2262	1822-2153/1662-2262
Min. turning radius (m)	7±0.3
Tyre (F/R)	14.9-26/18.4-38
Min. operating mass (kg)	5200	5250

Note: * Indicates EAC certificate and the model is X1304
