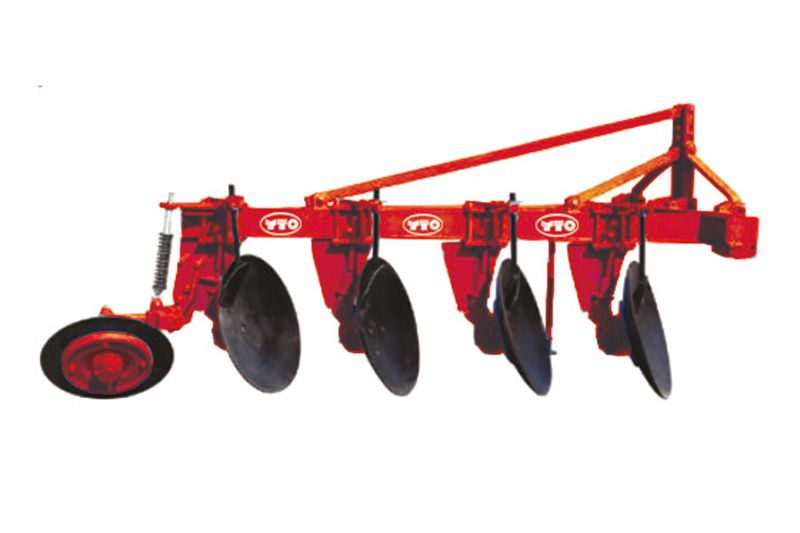

- Disc Plough & Disc Harrow
Features
Specifications
Model | 1LYT—225 | 1LYT—325 | 1LYT—425 | 1LYT—525 | 1LYT—625 |
Power (HP) | 35-50 | 60-80 | 80-100 | 90-120 | 120-160 |
Plowing width (cm) | 50 | 75 | 100 | 125 | 150 |
Working depth (cm) | 25-30 | ||||
Disc diameter (mm) | 660 | 660/710 | 660/710 | 660/710 | 660/710 |
Linkage type | 3-point linkage | ||||
Weight (kg) | 350 |

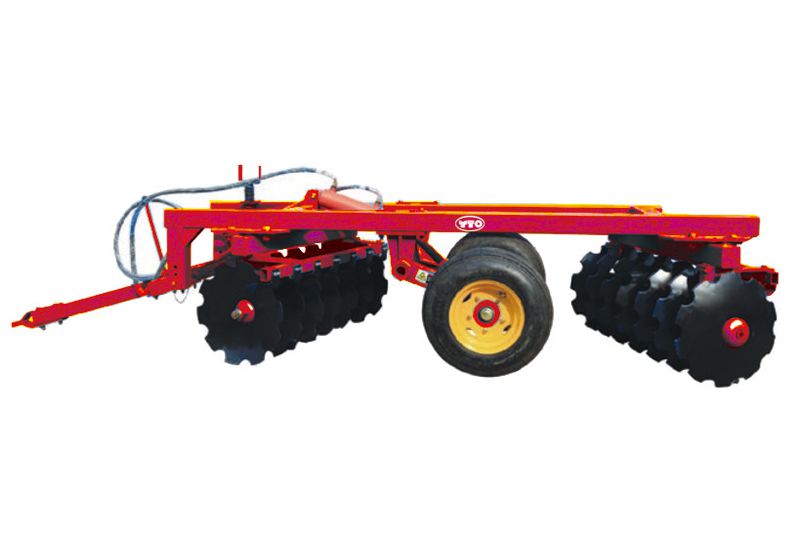

Features
Specifications
Model | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 | ||||
Matched power (HP) | 90-100 | 90-100 | 100-120 | 120-140 | 140-160 | ||||
Working width (cm) | 220 | 250 | 300 | 340 | 400 | ||||
Working depth (cm) | 20 | ||||||||
Linkage type | Tow | ||||||||
Disc diameter (mm) | 660 | ||||||||
No. of disc | 20 | 24 | 28 | 32 | 36 | ||||
Weight (kg) | 1350 | 1450 | 1550 | 1750 | 1950 |
