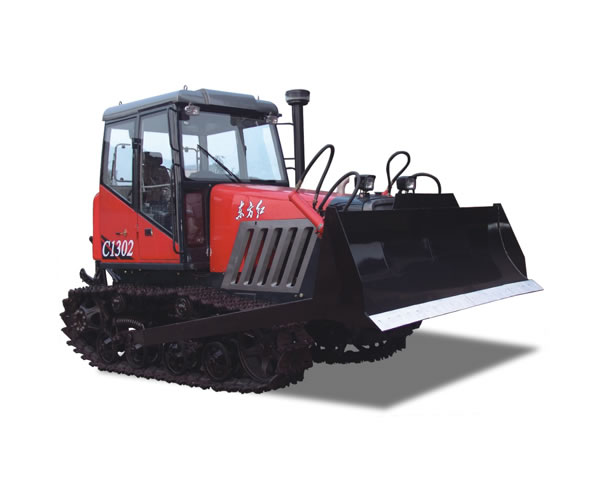

100-130 HP Crawler Tractor

Currently, environmental protection has been a knotty problem for many countries. As an environmentalist, we employ the diesel engine produced from British technology for the 100-130HP crawler tractor, featuring large torque, powerful overload capacity, and energy conservation.

Features

The (6F+2R) gear box with goggle shift sleeve contributes to improving the reliability, and reducing operating force of the chain-track tractor.
In order to improve the service life of the product, we equip the main clutch with 14' friction plate with damping spring.
The steering clutch made of new frictional material extends the life cycle of the 100-130HP crawler tractor. Moreover, the optimization of the transmission structure enhances the reliability of our agricultural crawler tractor.

With humanized design for the operating mechanism, this range of product is manufactured with self-lubricated shaft sleeve to reduce the operating force and operating friction. The maintenance of the bulldozer is quite easy and convenient.
For outstanding trafficability and steering performance, our product can be installed with rubber track, as well.
The fully enclosed cab of our crawler tractor with push shovel can be manufactured with heating system, air condition, and audio system. The broad vision, nice appearance, and the comfortable working environment may bring user a happy mood.

Specifications

Model	C1002	C1202	C1302
100-130HP crawler tractor
Overall dimension (L×W×H) (mm)(with dozer blade)	5367×2462×2910
Min. operating mass (kg)	7300
Track gauge (mm)	1435
Wheelbase (mm)	1792
Track shoe width (mm)	390
Ground pressure (kPa)	47.7 (with dozer blade)
Diesel engine
Model	LR6A3-21	LR6A3Z-23	LR6A3Z-22
Type	In-line, water-cooled, four stroke	In-line, water-cooled, four stroke, supercharged	In-line, water-cooled, four stroke, supercharged
Rated power and rotating speed (kW/rpm)	73.5/2100	88.2/2300	95.6/2200
Gearbox
Gear shift (F/R)	6/2
Speed range (km/h)(F/R)	3.20-11.85/2.85-5.41	3.50-13.13/3.13-5.93	3.71-13.90/3.31-6.28
Power PTO shaft (kW)	62	74	81
PTO Rotating speed (rpm)	540/1000
Clutch	Double disc, single acting
Working device
Suspension type	Rear-mounted two-point or three-point suspension (type II)
Plowing depth control method	Height adjustable
Lifting force (KN)	14.6
Size of dozer blade (W×H)(mm)	2462×850
Embedded depth of dozer blade (mm)	330
